CASE-H

FARMALL B RANGE 37hp - 60hp

REQUEST A QUOTE
DOWNLOAD BROCHURE

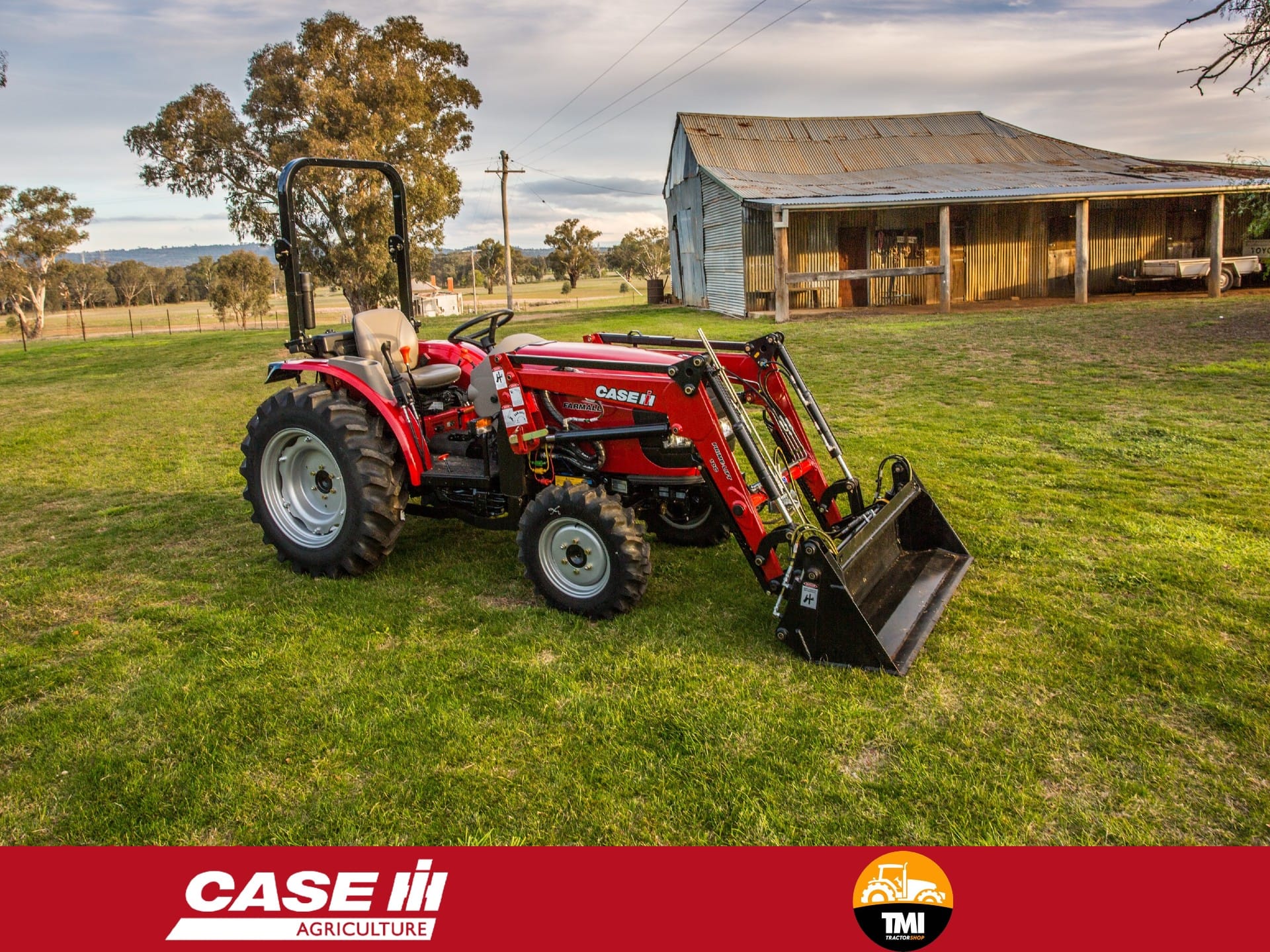

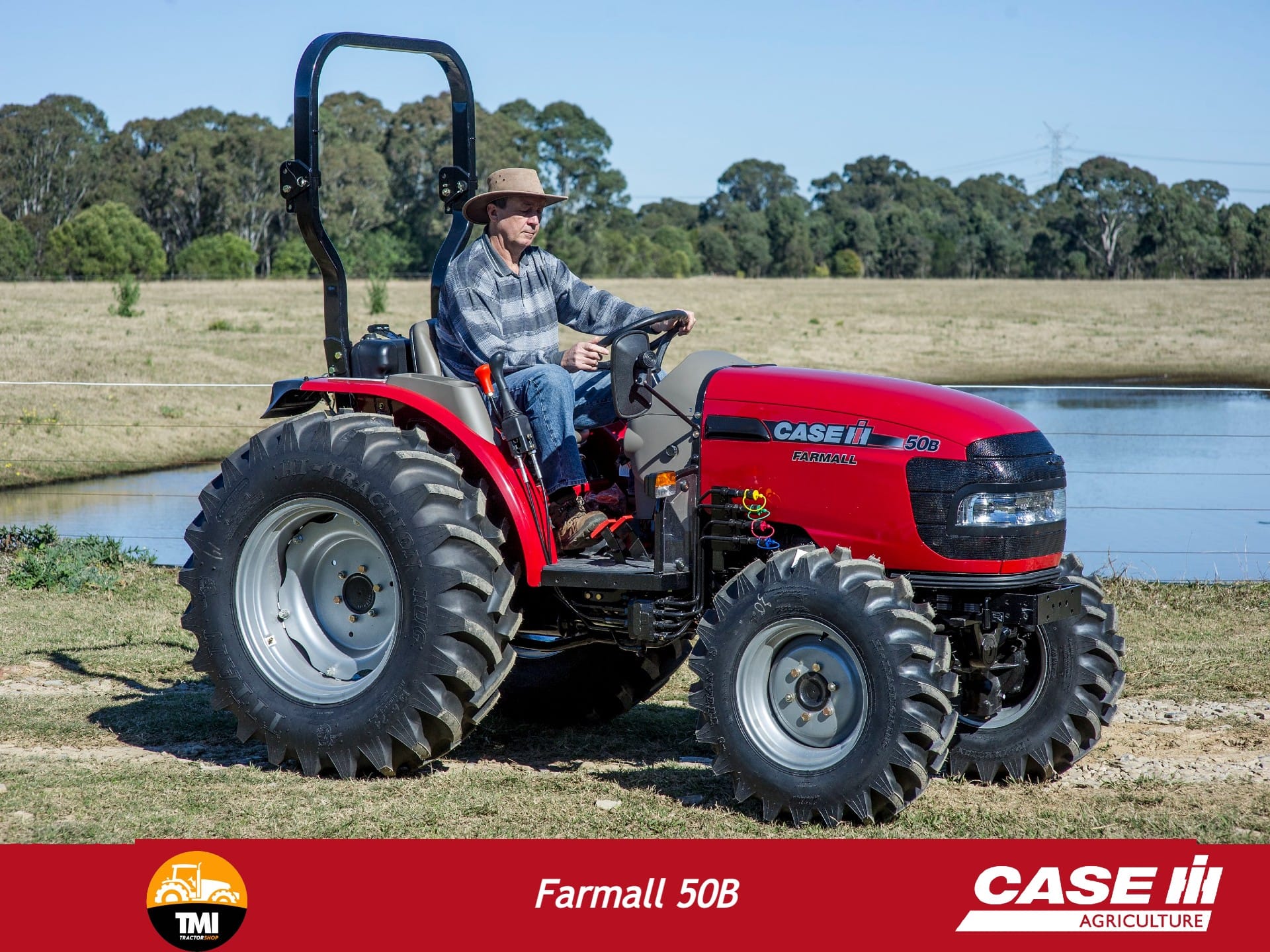

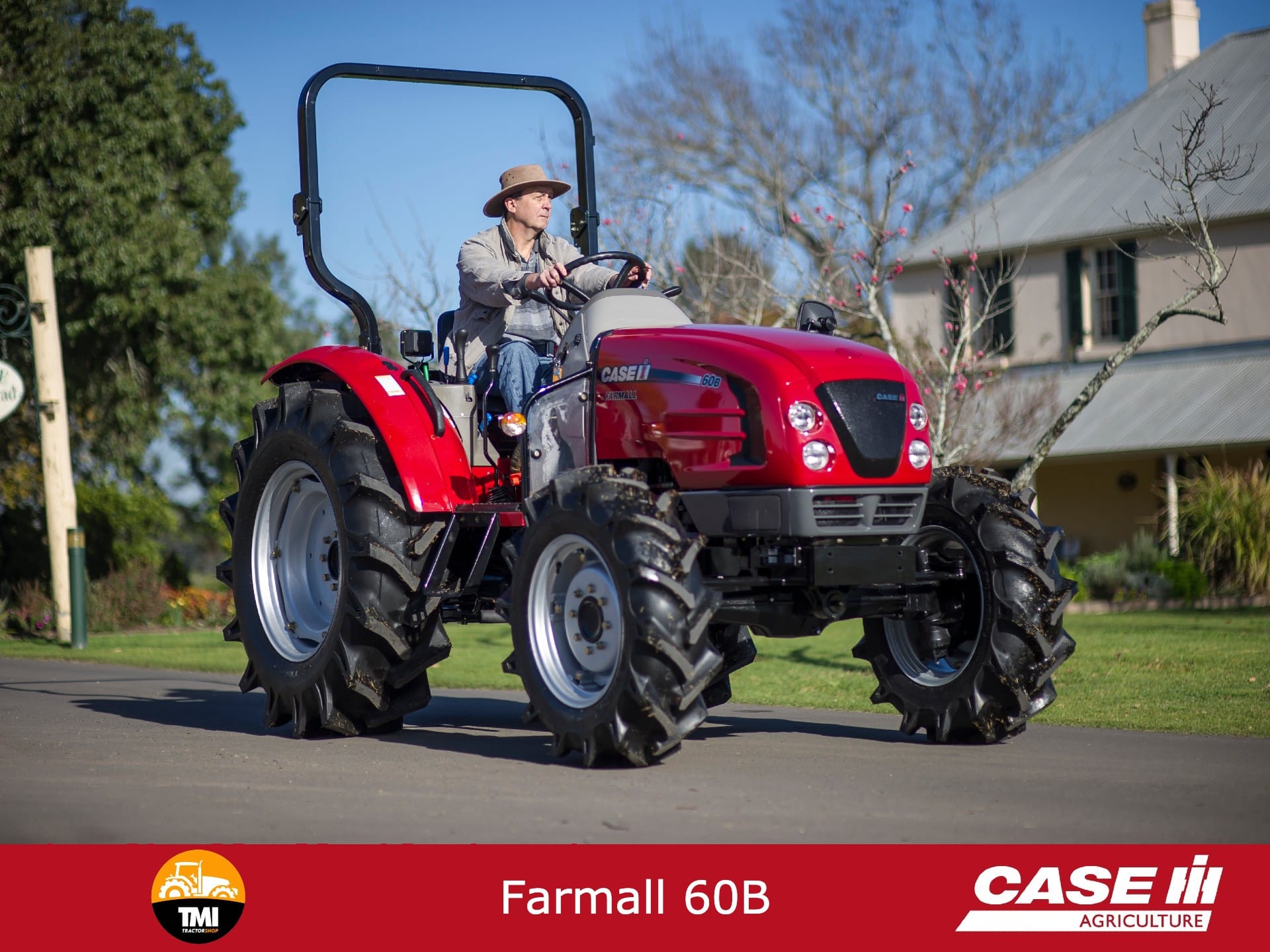

Farmall B Tractor Range
Thanks to smart design, rugged construction and reliable horsepower, all Farmall B Series tractors deliver tonnes of performance in a compact size. Their 3 and 4 cylinder diesel engines provide horsepower ranging from 23 to 57, so you’re sure to find a model that fits the needs of your operation. These tractors feature gear or hydrostatic transmissions, a comfortable operator seat with ergonomic controls and a range of front end loader options.

  • HORSEPOWER

    23 – 57 HP

  • ENGINE CAPACITY

    1.1 – 2.5 L

  • MAXIMUM TORQUE

    64 – 170 NM

  • OVERALL WEIGHT

    720 – 2370 KG

The Working Environment

Easy to operate and built for versatility, the Farmall B handles trailers, light implements, mowing, front loading and more. It’s the small but mighty helper your operation can rely on.

Front Axle

Selectable 4WD with great turning angles acheived.

Foldable ROPS

The standard fold-down roll bar allows you to move into low clearance areas quickly and easily.

Engines

Smart design, rugged build and reliable diesel power make the Farmall B Series the compact workhorse you can count on. With 23–57 hp from 3 or 4-cylinder engines, gear or hydrostatic transmissions, and a range of loader options, there’s a model to suit every job.
ENGINE
  • 38HP Mitsubishi Engine
  • 64 Nm Max Torque
  • Rated Speed – 2700 rpm
  • Number of Cylinders – 4
  • Aspiration – Natural
  • Displacement – 1.758L
  • Fuel Tank – 33 L
  • Rated PTO Power HP (kW)
    • 29(22) – Hydro
    • 31(23) – Mech
  • PTO Speed – 540 rpm
  • PTO Type – Independent Electro-Hydraulic
  • Mechanical
    • 12 x 12 Gears
    • Speeds 1.2 – 24 klm/h
  • HST
    • 3 Range
    • Speed 0 – 25 klm/h
  • 30 l/min Gear Pump
  • 1 Rear Remote and 2 sets mid for loader ready
  • Cat 1 Linkage balls
  • Hydrostatic Steering
  • Approximate Shipping Weight (kg) – 1403 (HST) / 1385 (MAN)
  • Length – 2987 mm
  • Width – 1333 mm
  • Height top of ROPS – 2352 mm
ENGINE
  • Gross Horsepower – 47 hp (35 kW)
  • Rated Speed – 2600 rpm
  • Number of Cylinders – 4
  • Aspiration – Natural
  • Displacement – 2.505L
  • Fuel Tank – 36 L
  • PTO Horsepower
    • 37(27) – Hydro
    • 39(29) – Mech
  • PTO Speed – 540 rpm
  • PTO Type – Independent Electro-Hydraulic
  • Mechanical
    • 16 x 16 Gears
    • Speeds 1.2 – 27 klm/h
  • HST
    • 3 Range
    • Speed 0 – 25 klm/h
  • 29 l/min Gear Pump
  • 1 Rear Remote and 2 sets mid for loader ready (4 outlets)
  • Cat 1 Linkage balls
  • Hydrostatic Steering
  • 3-Point Linkage – Category 1
  • Approximate Shipping Weight (kg) – 1680 (HST) / 1650 (MAN)
  • Length – 3192 mm
  • Width – 1672 mm
  • Height top of ROPS – 2447 mm
ENGINE
  • Gross Horsepower – 57 hp (43 kW)
  • Rated Speed – 2600 rpm
  • Number of Cylinders – 4
  • Aspiration – Turbo
  • Displacement – 2.505L
  • Fuel Tank – 80 L
  • PTO Horsepower – 47 hp (35 kW)
  • PTO Speed – 540 / 750 / 1000 rpm
  • PTO Type – Independent Electro-Hydraulic
  • 16 x 16 Manual Transmission
  • Gear Shuttle Synchromesh (F/R)
  • Rear Diff-lock
  • Brake Type -Wet Multi-Disc
  • 4 Ranges
  • Implement Hydraulic Flow – 36 L/min
  • Remote Valves – 2 sets rear and 4 outlets mid
  • 3-Point Hitch – Quick release hook ends for Cat 1/2 balls
  • 1.2 – 32 klm/h rated speeds
  • Approximate Shipping Weight (kg) – 2165 (ROPS) / 2370 (CAB)
  • Length – 3556 mm
  • Width – 1700 mm
  • Height top of ROPS – 2650 mm
  • Height top of CAB – 2465 mm
