DEUTZ-FAHR

NEW 5090D CAB

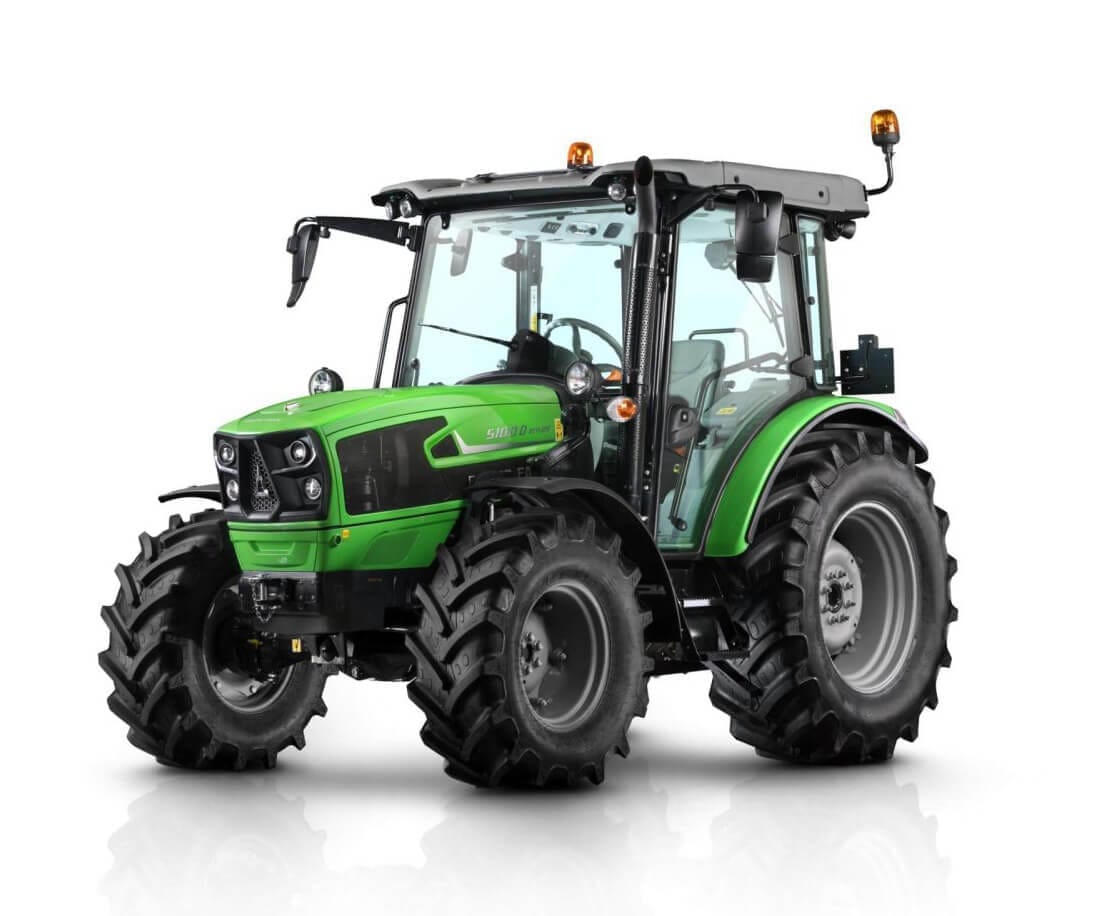

5090D GS CAB – Simply Designed for Productivity

The 5090D GS CAB is built to deliver efficient performance for everyday farming, light transport, and fieldwork—making it the ideal choice for small to mid-size operations. Powered by a 91 hp, 3-cylinder turbocharged and intercooled engine, it offers smooth, reliable power backed by a 15/15 wet clutch Powershuttle transmission with Comfort Clutch and Stop & Go functionality.

Efficiency comes standard: the maximum speed of 40 km/h is reached at just 1800 rpm, while four-wheel drive and independent four-wheel braking ensure stability and safety across varied conditions. A 56 l/min hydraulic pump powers up to three rear mechanical valves, and the EasyLift rear linkage system delivers a maximum lift capacity of 3500 kg, with a PTO offering up to three rotation speeds for true versatility.

Inside, the air-conditioned cab offers 360° visibility, wide doors, and ergonomic controls, giving operators the comfort and confidence to stay productive all day long.

5090D GS CAB – Efficiency, versatility, and comfort in one powerful package.

With three models ranging from 76 hp to 102 hp, each equipped with a Wet Clutch Powershuttle, the 4E GS delivers smooth, reliable power across a wide variety of applications. Features like the Comfort Clutch with Stop & Go function, 4-wheel braking, and FOPS-certified falling object protection ensure safety and ease of use, even in demanding environments.

Compact, capable, and comfortable, the 4E GS Series is the perfect everyday work partner.

4E GS Series – Built for every task, every day.

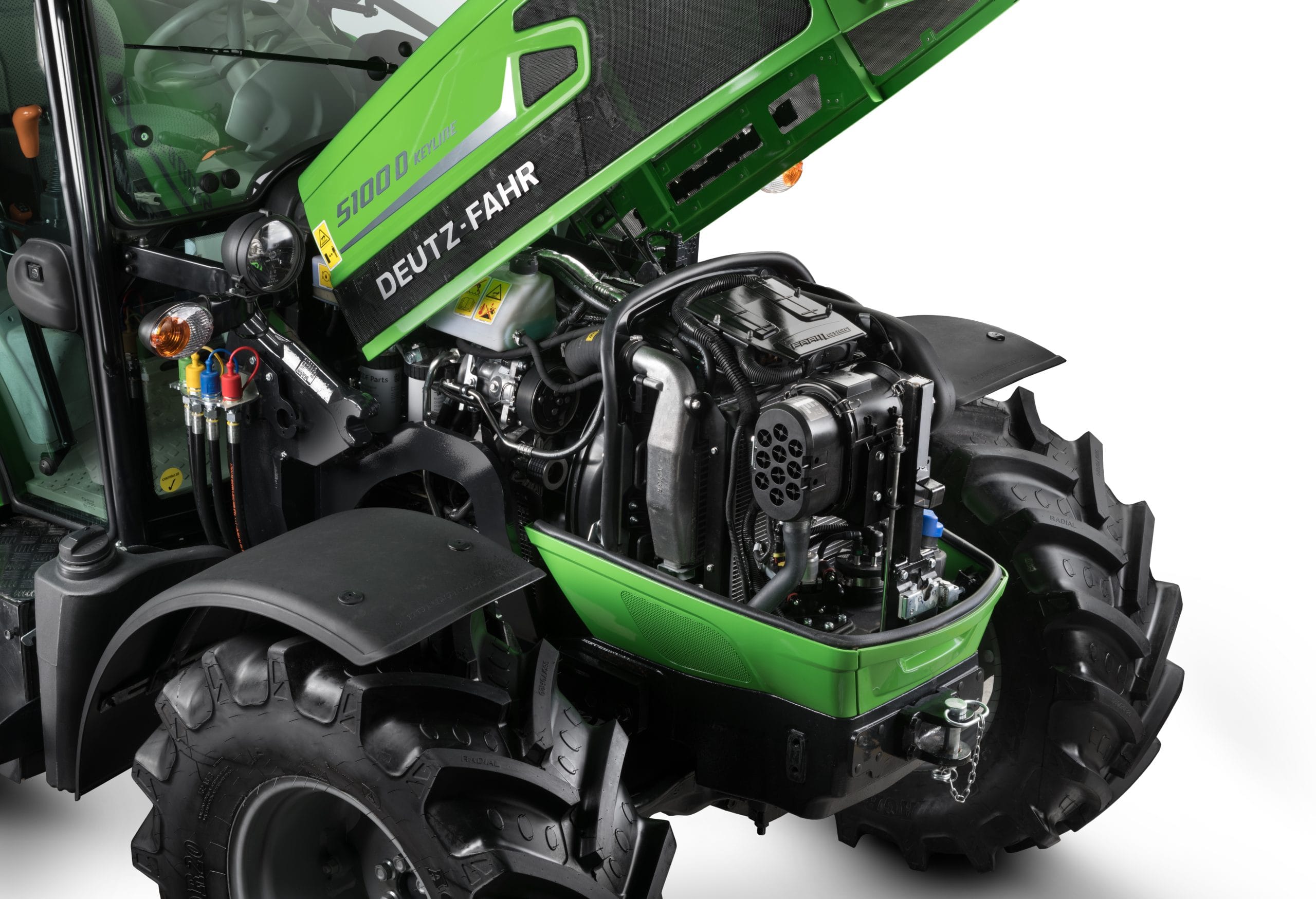

FARMotion Engine

The Tier 3 FARMotion engine is well-known for it’s fuel efficiency, quiet operation, dependable performance and low maintenance design.

Front Brakes

Equipped with front axle wet brakes for safe stopping in any terrain. 4 Wheel braking improves safety with better traction and stability. 4 Wheel braking does not rely on 4WD components to apply the front brakes.

Transmission

The new 5d GS series now uses a wet clutch, power shuttle design. The shuttle modulation feature included in the new design helps with adjusting for smother directional changes.

Stop and Go

This feature makes work easier by allowing smooth, quick stopping and starting without using the clutch pedal. With enabled, by pressing the brakes only, you can come to a smooth stop, then return working by releasing the brake.

Rear Linkage

The Deutz 4E has a huge 3500kg lift capacity on the rear 3-point linkage. A precise and responsive mechanical lift.

Cab

The cab offers 360° visibility, wide doors, air conditioning, radio, storage, USB charging, and equipment mounts—delivering comfort and convenience for every job.

ENGINE
  • FARMotion LCR Diesel Engine
  • Tier 3
  • 3 Cyl
  • Turbo Intercooled
  • 91hp
  • Wet Clutch power shuttle
  • 15F – 15R
  • Wet Clutch Power Shuttle with Stop and Go
  • 4 Wheel Wet Braking
  • Push Button 4WD
  • Push Button Diff Lock
  • Gear Pump Open Center Hydraulic System
  • 56 lpm
  • 2 Sets of rear remotes on 4080 and B Spec / 3 Sets on other models
  • Electro-Hydraulic Wet Clutch
  • 540 / 540E
  • Minimum 298 m/hr
  • Max 40 klm/h ECO 1800rpm
