Deutz-Fahr 4E Series
4E GS Series – Utility Made Simple
The new 4E GS Series ROPS tractors are built for versatility, making them the ideal choice for small farms, local authorities, horticulture, and property maintenance.
With three models ranging from 76 hp to 102 hp, each equipped with a Wet Clutch Powershuttle, the 4E GS delivers smooth, reliable power across a wide variety of applications. Features like the Comfort Clutch with Stop & Go function, 4-wheel braking, and FOPS-certified falling object protection ensure safety and ease of use, even in demanding environments.
Compact, capable, and comfortable, the 4E GS Series is the perfect everyday work partner.
4E GS Series – Built for every task, every day.

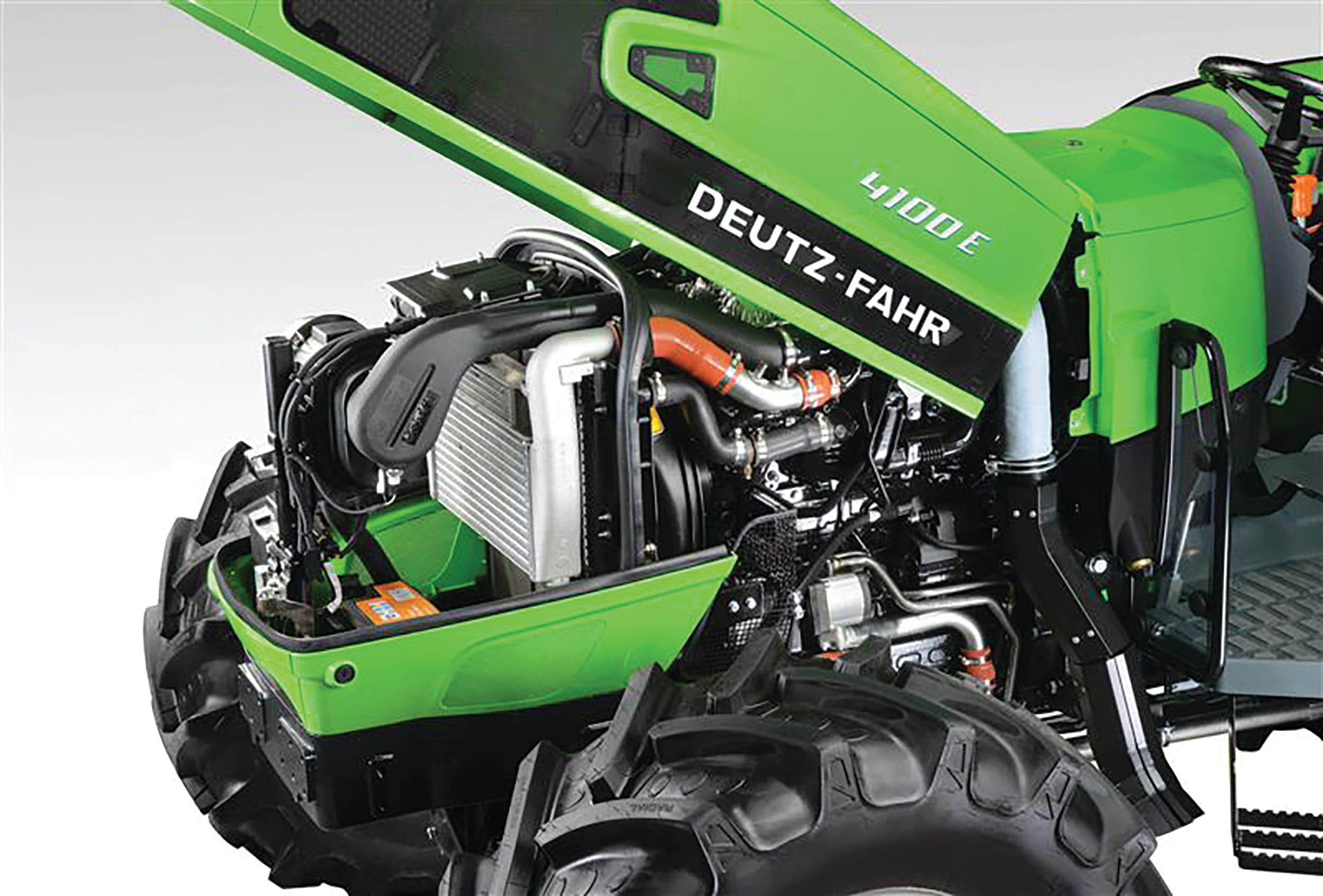

FARMotion Engine
The Tier 3 FARMotion engine is well-known for it’s fuel efficiency, quiet operation, dependable performance and low maintenance design.
Front Brakes
Transmission
Stop and Go

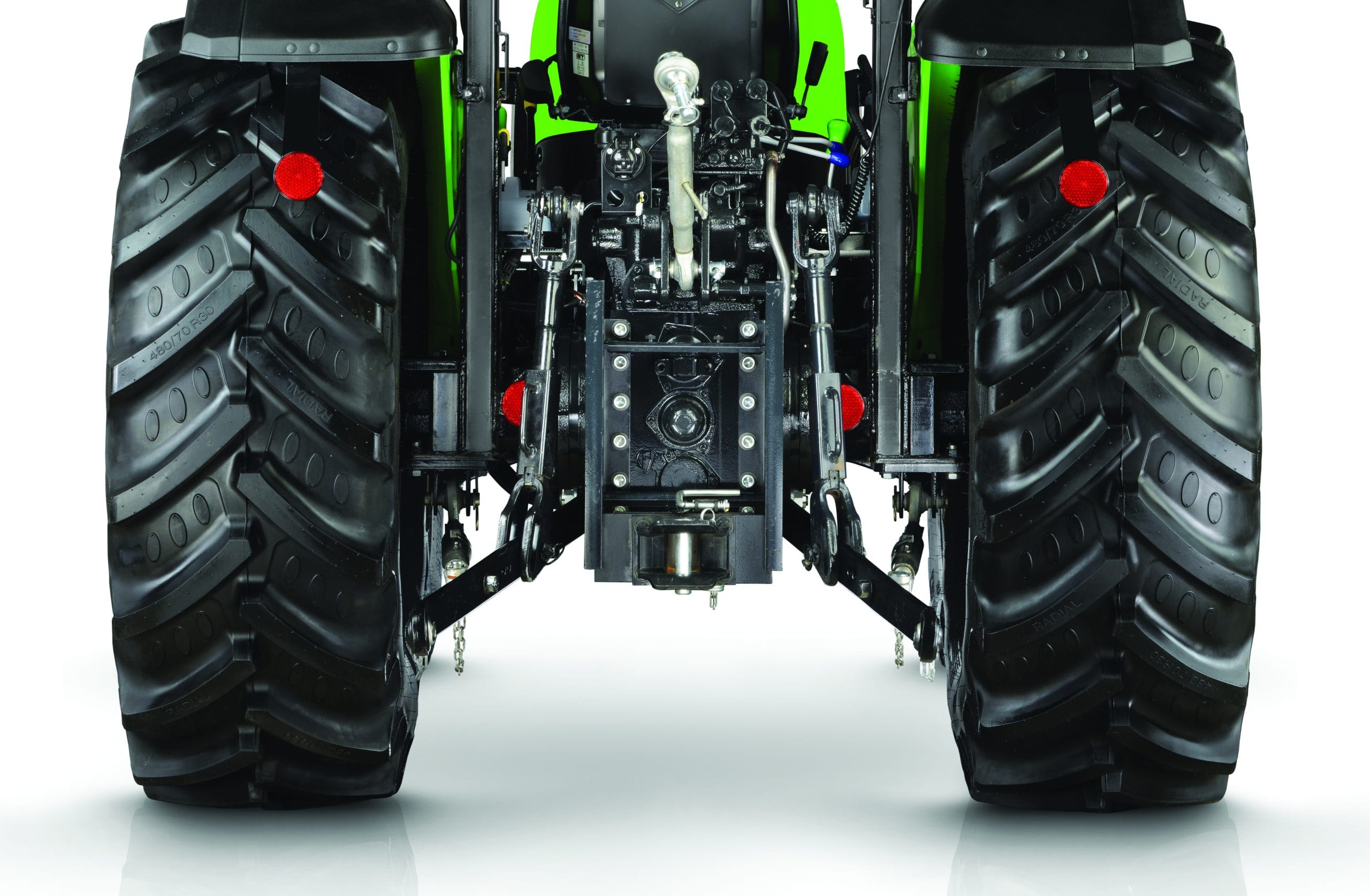

Rear Linkage
The Deutz 4E has a huge 3500kg lift capacity on the rear 3-point linkage. A precise and responsive mechanical lift.
ENGINE
- FARMotion LCR Diesel Engine
- Tier 3
- 3 Cyl
- Turbo Intercooled
- 76hp / 91hp / 102hp
- 75L Fuel Tank
TRANSMISSION
- Wet Clutch power shuttle
- 15F – 15R (B spec 30×30)
- Wet Clutch Power Shuttle with Stop and Go
- 4 Wheel Wet Braking
- Push Button 4WD
- Push Button Diff Lock
HYDRAULICS
- Gear Pump Open Center Hydraulic System
- 56 lpm
- 2 Sets of rear remotes on 4080 and B Spec / 3 Sets on other models
POWER TAKE OFF
- Electro-Hydraulic Wet Clutch
- 540 / 540E Speeds
TRAVEL SPEEDS
- Minimum 298 m/hr
- Max 40 klm/h ECO 1800rpm
Compare Deutz-Fahr 4E Models
| Model | Engine power | Transmission |
|---|---|---|
| 4080E GS ROPS | 76 hp | 15 × 15 wet clutch Powershuttle |
| 4090E GS ROPS | 91 hp | 15 × 15 wet clutch Powershuttle |
| 4100E GS ROPS | 102 hp | 15 × 15 wet clutch Powershuttle |
