HX02 SERIES | 130hp and 140hp
HX Series – Power Meets Luxury
The Kioti HX Series (130–140 hp) represents a new chapter in premium tractors, combining extreme power with luxurious design. Inside the spacious, ergonomically crafted cabin, operators enjoy reduced fatigue, maximum convenience, and even a premium passenger seat—proof that comfort is a top priority.
Ease of operation is built in, with the multi-functional electronic armrest and 8-speed Powershift with Auto Powershift positioned for effortless control. A 32×32 transmission, limited slip differential, and closed centre hydraulics deliver smooth, precise performance across the toughest applications.
The curved windscreen meets the roofline to provide unmatched peripheral vision—ensuring safe, accurate loader work and an incredible all-round view from the cab.
The Kioti HX Series – Premium comfort, uncompromising power.
Engine
Built with a 3.8L 4 cylinder diesel engine at either 130hp or 140hp, the HX achieves optimum engine performance, thereby increasing work productivity.
Powershift
A simple button operation on the side speed lever and armrest gives you a 32×32 transmission with an 8-speed Powershift in 4 ranges.

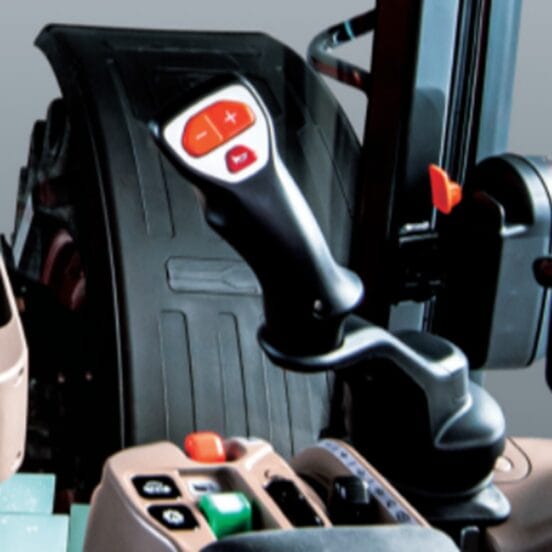

Loader Joystick

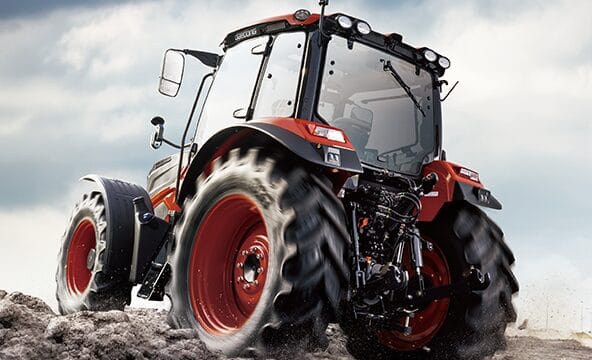

3-Point Linkage
The electronic controlled 3-point linkage system boasts a 4852kg lifting capacity, allowing for the installation of multiple working implements.
ENGINE
- Daedong 4J243TI-TP2A
- 3833cc displacement
- 130 hp (HX1301) & 140 hp (HX1401)
- 230 Litre Fuel Tank Capacity
TRANSMISSION
- Power Shuttle
- Power Shift
- 32 x 32 Speed
- Wet Disc Clutch
- Rear Standard Diff Lock
- Independent PTO
- Hydraulic 4WD
HYDRAULICS & LINKAGE
- Electronic 3 Point Lift
- 165.3L/min Total Hydraulic Flow
- 118L/min Implement Pump
- 47.3L/min Power Steering Pump
- Category II 3-Point Hitch
- 4852kg Maximum Lifting Capacity
- 4 (1x Float/Detent – 3x Spring Return) Remote Valves
- Hydrostatic Power Steering
POWER TAKE OFF
- Independent 540/750/1000 PTO
OPERATOR ENVIRONMENT
- Instructor seat
- Speed gauge
- PTO cruise
- Parking alarm
- Fridge and heating cabinet
- Drink holder
- Bluetooth radio
- A/C and heating
- Front fenders
- Working lights
- Sun roof
TRAVEL SPEEDS
- Forward 0.38 – 40.48km/h
- Reverse 0.37 – 40.20km/h
DIMENSIONS
- Overall Length incl. 3PL 4518mm
- Overall Width Minimum Tread 2267mm
- Overall Height 3011mm
- Wheelbase 2600mm
- Ground Clearance 496mm
- Weight with Cab and Tyres 4853kg
