PX9520 ROPS | PX1052 CAB | PX1152 CAB
PX Series – Built for Serious Farming

The Kioti PX Series—including the PX9520 (95 hp), PX1052 (105 hp), and PX1152 (110 hp)—is the heavyweight of the Kioti lineup, designed for serious farming and demanding agricultural operations. Weighing in at 4 tonnes, these tractors combine strength, durability, and comfort to handle the toughest jobs with ease.

A generous 120-litre fuel tank and fuel-efficient engines mean long working hours between refills, while hydrostatic power steering ensures smooth, responsive handling with minimal effort—perfect for intensive front-end loader work and heavy-duty field tasks.

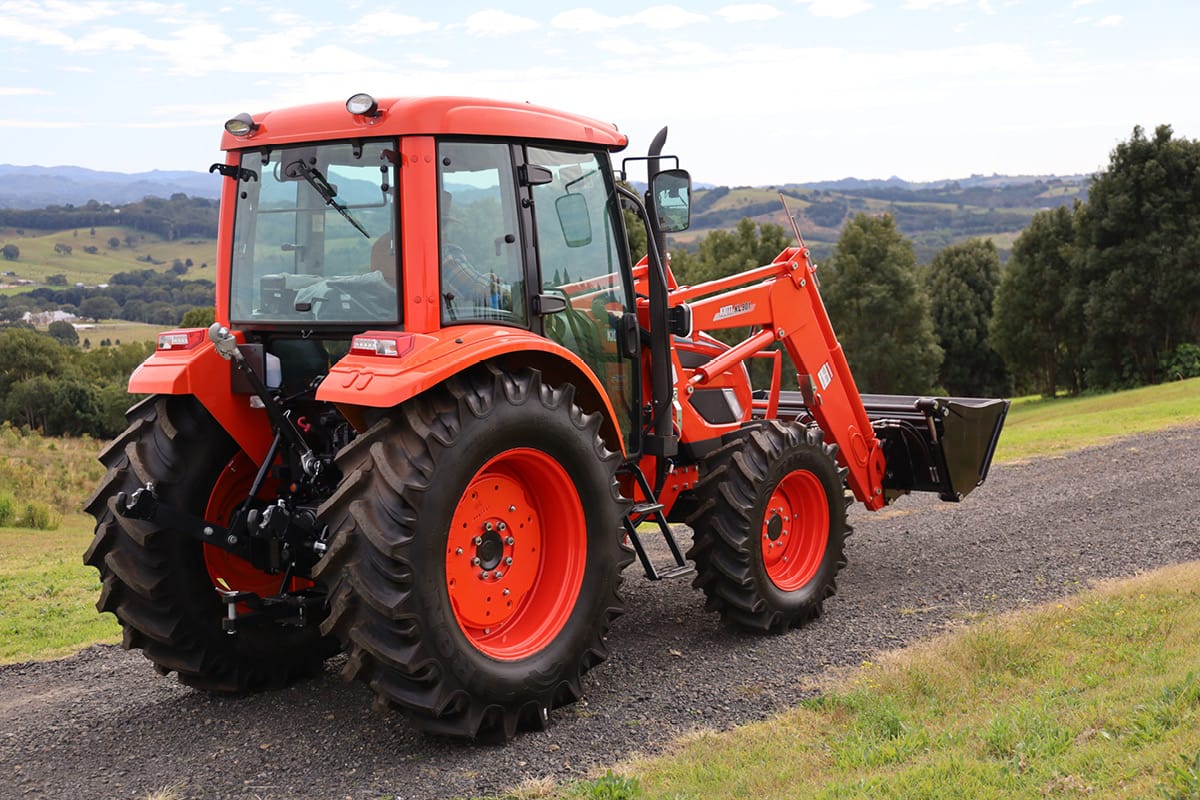

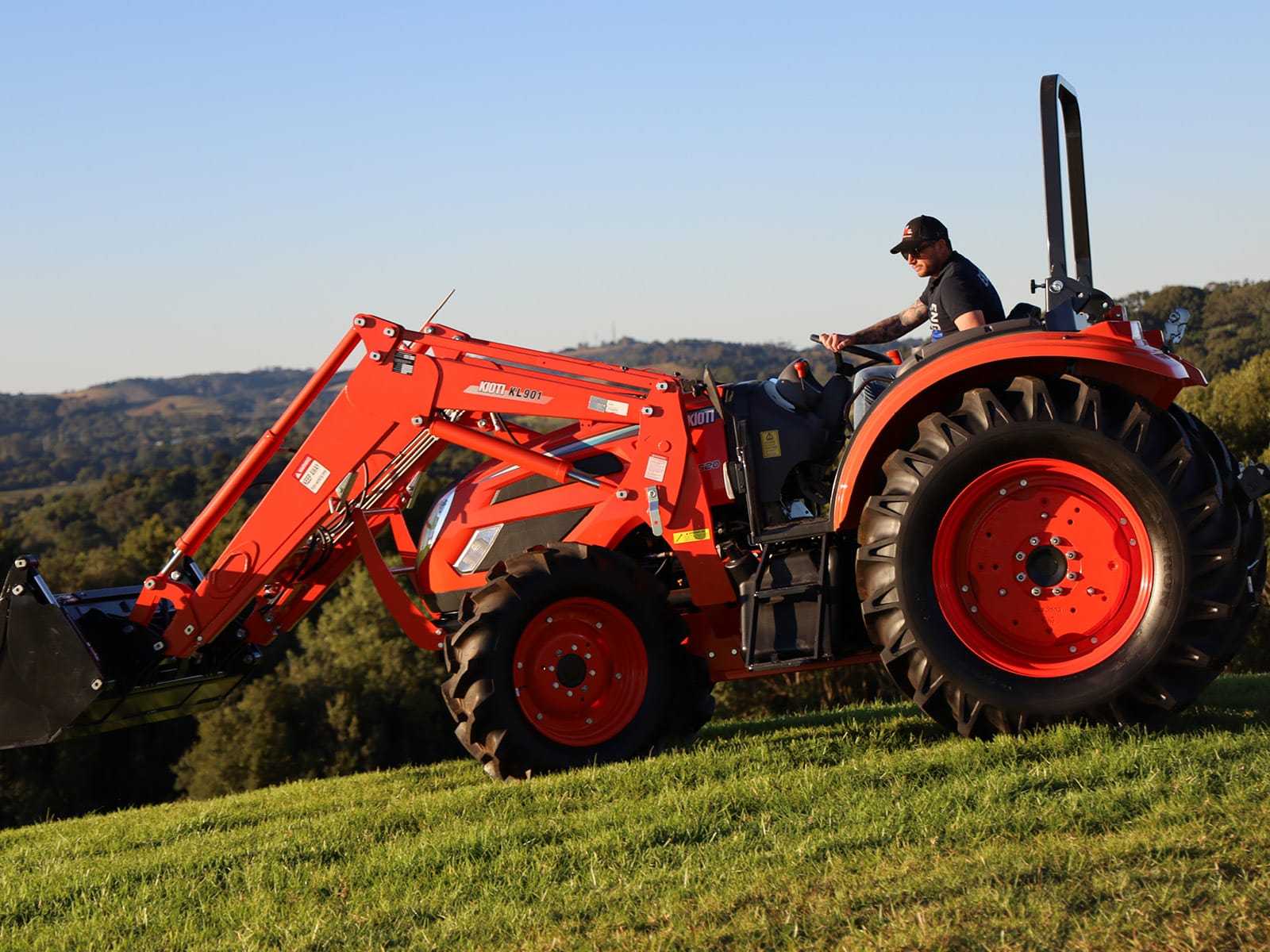

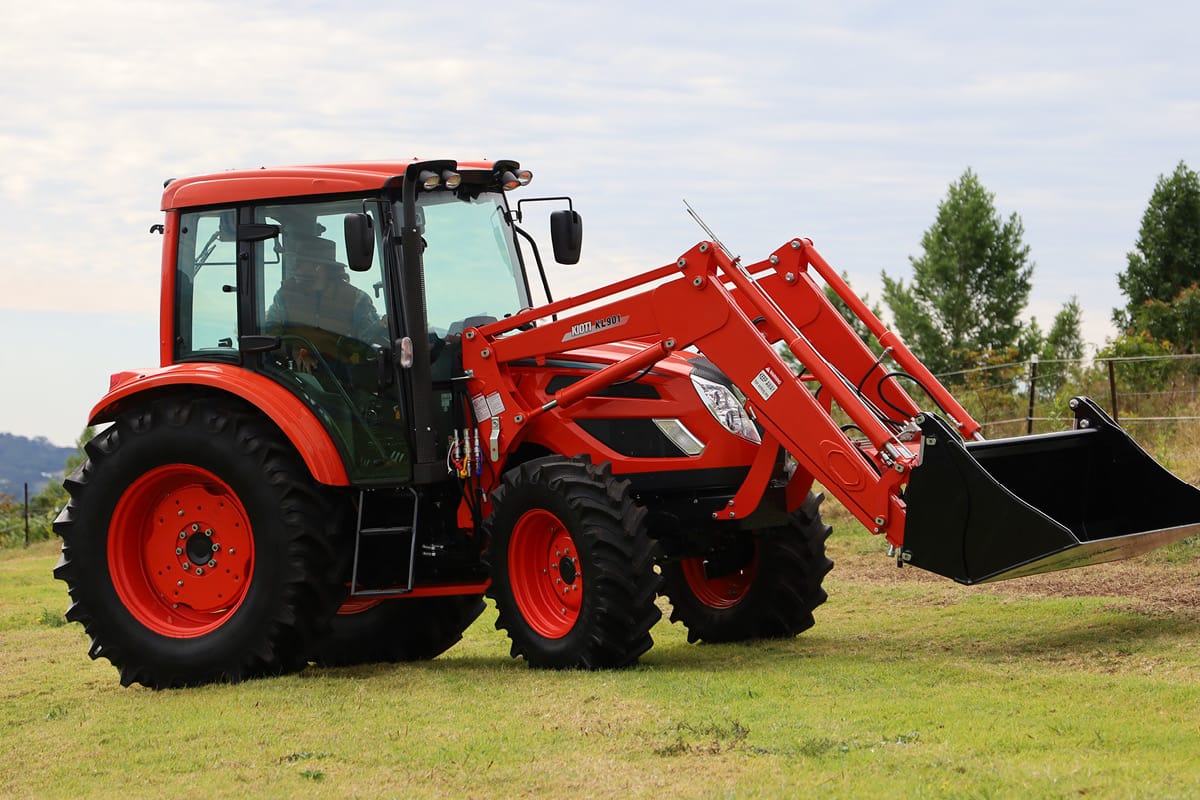

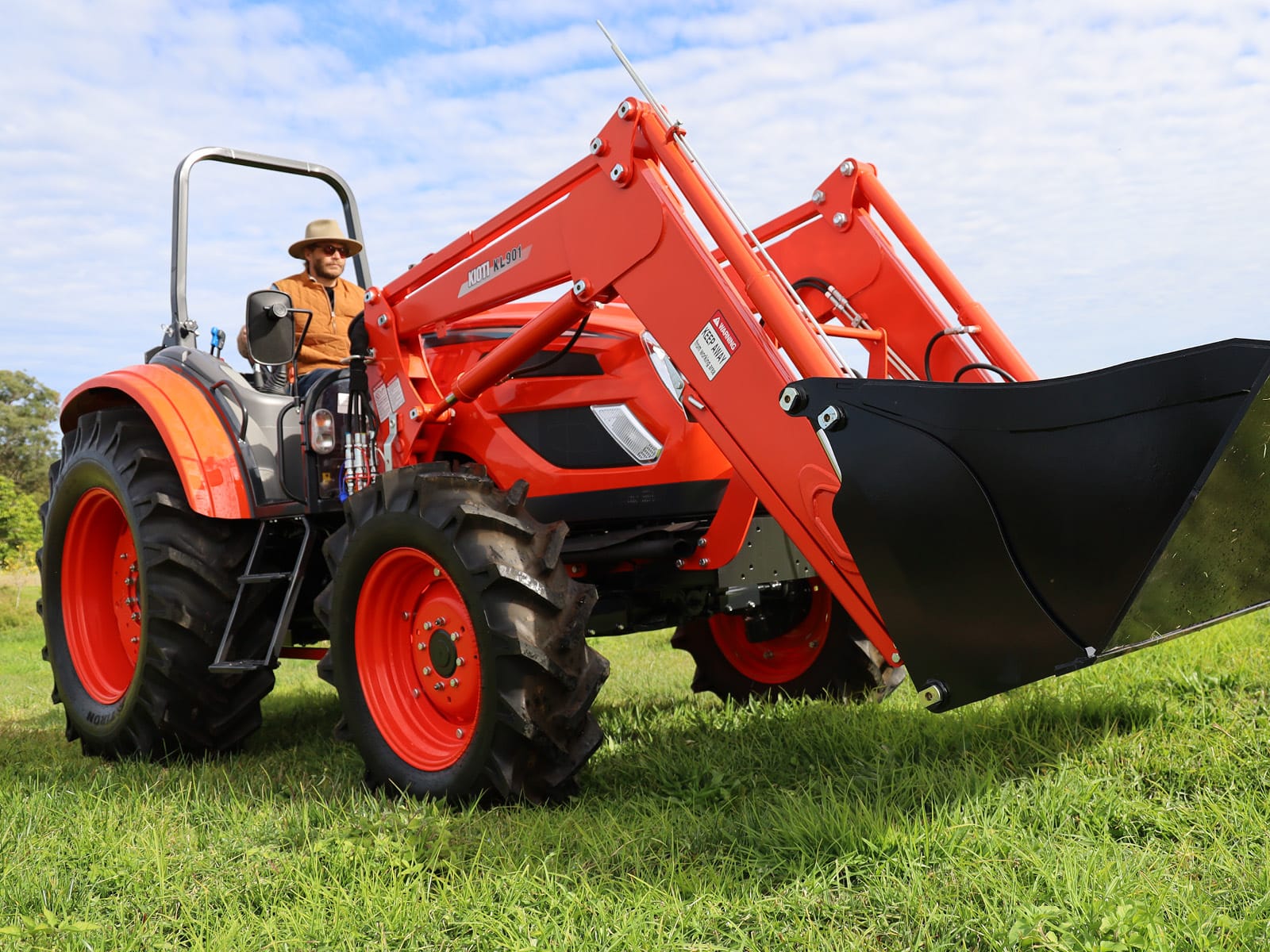

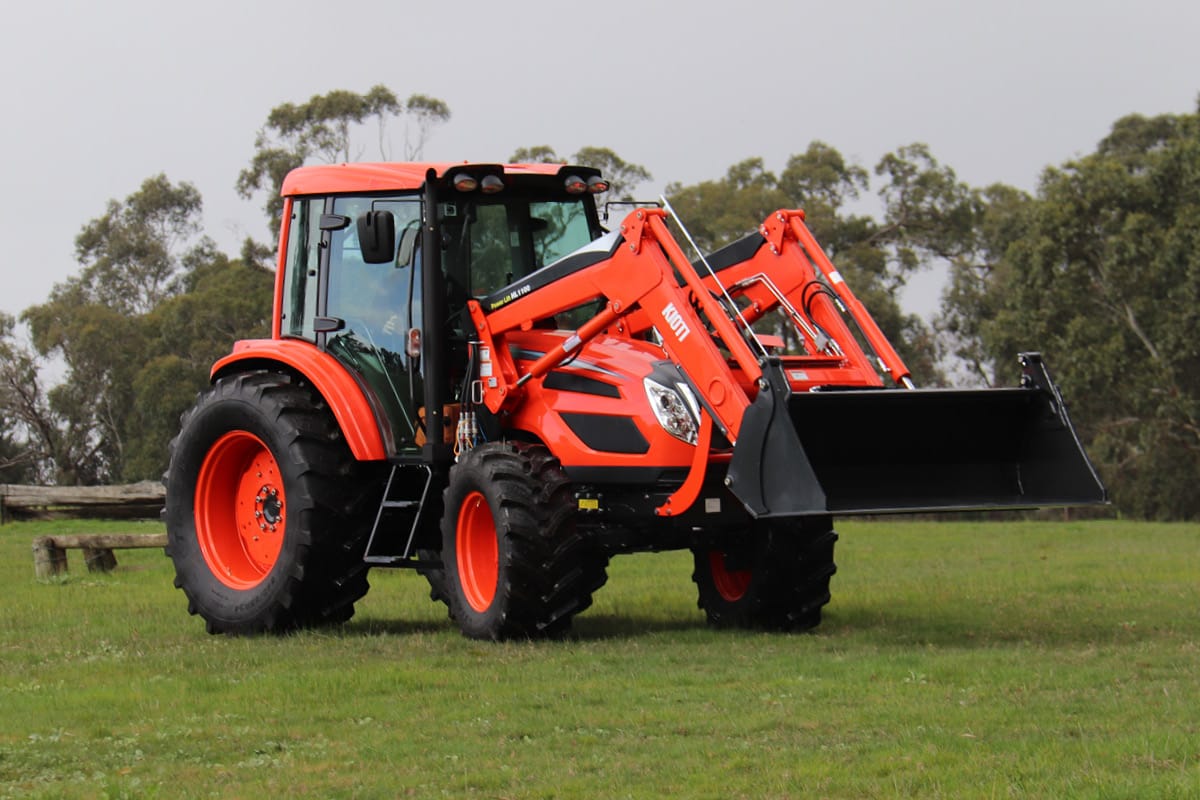

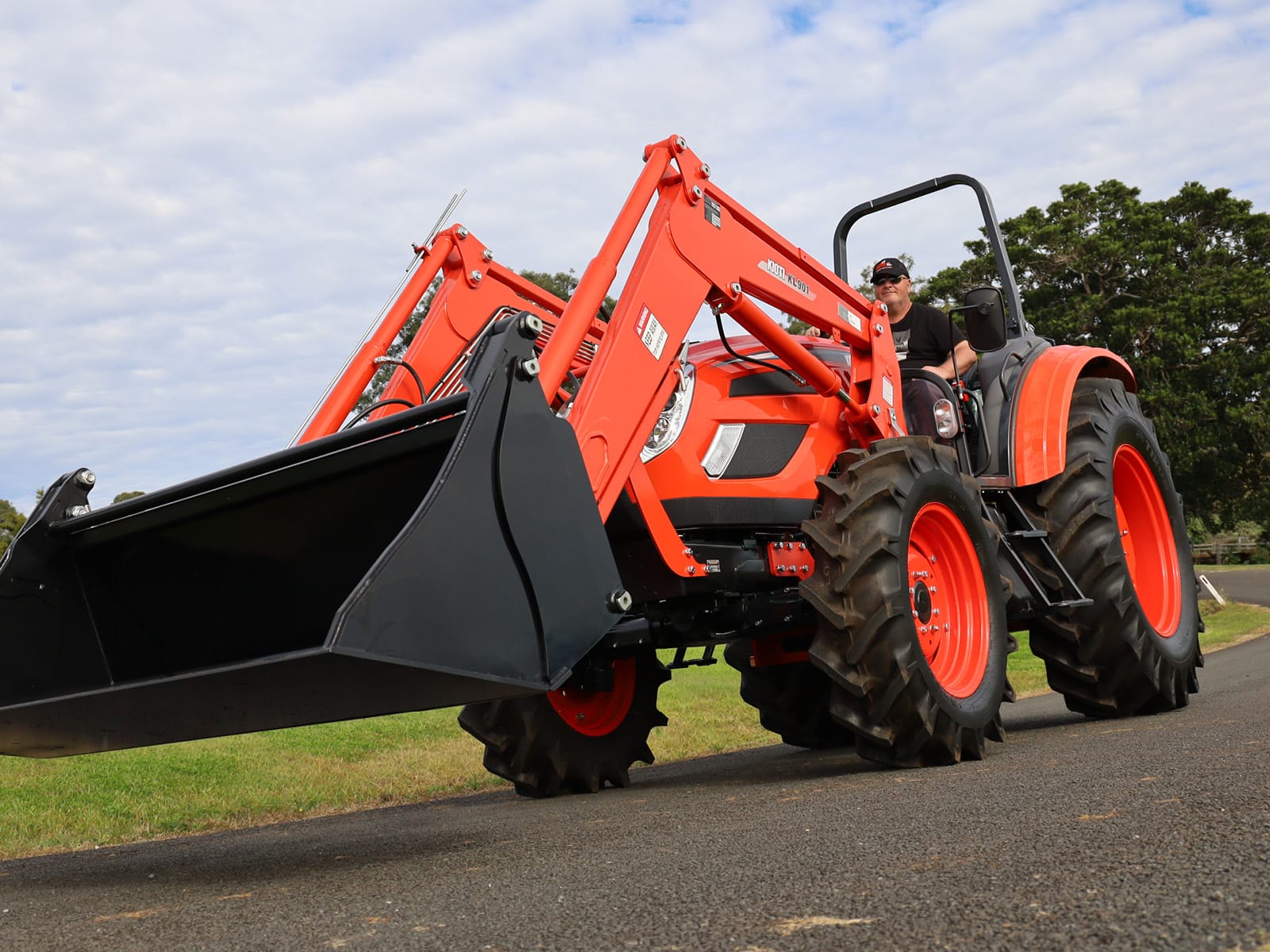

The PX9520 ROPS delivers dependable power and versatility in an open-station design, while the PX1052 and PX1152 Cab models elevate productivity with spacious, climate-controlled cabins. Inside, operators enjoy ergonomic seating, intuitive controls, excellent visibility, and reduced fatigue, even during long days on the job.

Advanced transmission systems provide smooth operation and precise control across challenging terrain, while high-capacity hydraulics offer exceptional lift performance and implement compatibility. Built with durable components, straightforward maintenance points, and modern features like digital dashboards and comprehensive safety systems, the PX Series is engineered for reliability and ease of ownership.

The Kioti PX Series – Heavy-duty power, comfort, and endurance.

Engine

The powerful and environmentally friendly Perkins diesel engines offer high output, low noise, low vibration and lower fuel consumption. The turbocharged engine with air-to-air intercooler ensures the PX has all the power the operator requires.

Platform

The PX9520 ROPS tractor features a wide step-through deck, grab handles, fully featured instrument panel, adjustable seat, tilt steering wheel and power steering. The PX Cab comes with a fully adjustable air suspension seat allowing the operator to work in comfort.

Hydraulics

Standard dual remote hydraulic valves accommodate a wide variety of attachments and implements. A mid-mount double acting valve and a single lever joystick for loader operations are standard on the PX series. The PX9520 and PX1052 has a lift capacity of 2,400 kg. The PX1152 has a heavy rear linkage and two large assist cylinders with a lift capacity of 3630kg at 24″ behind ball ends.

PTO

The two speed PTO 540/1000 with auto stop function is standard on all PX models.

ENGINE
  • Perkins 1104C-44TTG (PX9520/PX1052)
  • Perkins 1104D-44TAG (PX1152)
  • Liquid Cooled 4 Cylinder Diesel
  • 4399cc Displacement
  • PX9520 – 95hp @ 2200rpm / PX1052 – 105 hp @ 2400rpm (max) / PX1152 – 115 hp @ 2400rpm
  • 120 Litre Fuel Tank Capacity
  • PX9520 ROPS
    • Synchro Mesh
    • Synchro Forward and Reverse Shuttle
    • 16F X 16R
  • PX1052 and PX1152
    • Synchro Mesh
    • Power Shuttle
    • Push Button Hand Clutch
    • Wet Multi Disc Clutch
    • 32F x 32R Speed with Hydraulic High/Low
  • Differential Lock
  • 4 Wheel Drive
  • PX9520 and PX1052
    • Main Pump Capacity – 48.4 l/pm
    • Steering Pump Capacity – 30.8 l/pm
    • Total Maximum Flow – 79.2 l/pm
    • 2400kgs Maximum Rear Linkage Lift Capacity
  • PX1152
    • Main Pump Capacity – 74.8 l/pm
    • Steering Pump Capacity – 46.5 l/pm
    • Total Maximum Flow – 121.3 l/pm
    • 3630kg Maximum Rear Linkage Lift Capacity
  • Power Steering
  • Category II Three Point Linkage
  • Position, Draft, Mixed Control Lift System
  • 4 Rear Remote Outlets
  • Clevis Type Rear Draw Bar
  • 540 / 1000 rpm
  • Auto PTO
  • Wet Disc Type
  • High Quality Fully Adjustable Seat with Armrest & Backrest.
  • Adjustable Steering Wheel and Instruments
  • Flat Operator Deck (PX9520)
  • PX with Cabin
    • Deluxe Cabin with A/C and Heating
    • Radio
    • Front and Rear Wipers
    • Internal/External Air Exchanger Filters
    • 12V Refrigerator
